產品說明：

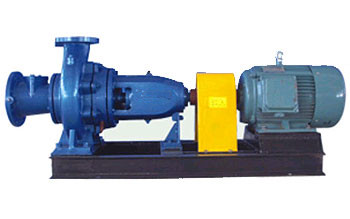

ST型雙流道無堵塞紙漿泵是通過國外進口漿泵研究改造后的新型產品，其使用壽命長，效率高，廣泛應用于造紙制漿介質輸送！
性能范圍：
流量Q：12.5-2400m3/h
楊程：8-70m
配套功率：0.75-220kw
工作溫度：≤80℃
輸送紙漿濃度≤6％
性能參數表：
|
型號及規格 ST |
流量 Q
（m3/h) |
楊程 H
(m） |
轉速
(r/min) |
效率 η
（%） |
電機型號/功率N(KW) |
|
r=1.0 |
r=1.4 |
|
65-50-160 |
12.5 |
8 |
1450 |
50 |
Y802-4/0.75 |
Y90S-4/1.1 |
|
65-50-200 |
12.5 |
12.5 |
1450 |
46 |
Y90S-4/1.1 |
Y90L-4/1.5 |
|
65-50-250 |
12.5 |
20 |
1450 |
38 |
Y100L1-4/2.2 |
Y100L2-4/3 |
|
80-65-160 |
25 |
8 |
1450 |
60 |
Y90S-4/1.1 |
Y90L-4/1.5 |
|
80-65-200 |
25 |
12.5 |
1450 |
50 |
Y100L-4/3 |
Y112M-4/4 |
|
80-65-250 |
25 |
20 |
1450 |
49 |
Y112M-4/4 |
Y132S-4/5.5 |
|
80-65-300 |
25 |
32 |
1450 |
42 |
Y132M-4/7.5 |
Y160M-4/11 |
|
100-80-200 |
|
50 |
50 |
2900 |
52 |
Y160L-2/18.5 |
Y180M-2/22 |
|
J |
25 |
12.5 |
1450 |
47 |
Y100L-4/3 |
Y112M-4/4 |
|
A |
40 |
40 |
2900 |
50 |
Y160M2-2/15 |
Y160L-2/18.5 |
|
100-80-250 |
|
50 |
20 |
1450 |
51 |
Y132M-4/7.5 |
Y160M-4/11 |
|
A |
40 |
16 |
1450 |
49 |
Y132S-4/5.5 |
Y132M-4/7.5 |
|
100-80-300 |
|
50 |
32 |
1450 |
50 |
Y160M-4/11 |
Y160L-4/15 |
|
A |
40 |
26 |
1450 |
48 |
Y132M-4/7.5 |
Y160M-4/11 |
|
150-100-250 |
|
100 |
20 |
1450 |
64 |
Y160L-4/15 |
Y180M-4/18.5 |
|
A |
80 |
16 |
1450 |
62 |
Y160M-4/11 |
Y160L-4/15 |
|
150-100-300 |
|
100 |
32 |
1450 |
68 |
Y180M-4/18.5 |
Y180L-4/22 |
|
A |
80 |
26 |
1450 |
65 |
Y160L-4/15 |
Y180M-4/18.5 |
|
150-100-350 |
|
100 |
20 |
2900 |
55 |
Y200L1-2/30 |
Y200L2-2/37 |
|
J |
50 |
12.5 |
1450 |
53 |
Y132S-4/5.5 |
Y132M-4/7.5 |
|
A |
80 |
40 |
2900 |
50 |
Y180M-2/22 |
Y100L1-2/30 |
|
150-100-200 |
A |
80 |
40 |
1450 |
47 |
Y180L-4/30 |
Y200L-4/30 |
|
150-100-400 |
|
150 |
60 |
1450 |
55 |
Y250M-4/55 |
Y280S-4/75 |
|
A |
100 |
60 |
1450 |
52 |
Y225M-4/45 |
Y250M-4/55 |
|
200-150-250 |
|
200 |
20 |
1450 |
68 |
Y180L-4/22 |
Y180L-4/22 |
|
A |
160 |
16 |
1450 |
65 |
Y160L-4/15 |
Y180M-4/18.5 |
|
200-150-300 |
|
200 |
32 |
1450 |
68 |
Y225S-4/37 |
Y225M-4/45 |
|
A |
160 |
26 |
1450 |
45 |
Y180L-4/22 |
Y200L-4/30 |
|
200-150-350 |
|
120 |
40 |
1450 |
52 |
Y200L-4/22 |
Y200L-4/37 |
|
200-150-200 |
|
200 |
50 |
2900 |
55 |
Y250M-2/55 |
Y280S-2/75 |
|
J |
100 |
12.5 |
1450 |
50 |
Y132M-4/7.5 |
Y160M-4/11 |
|
A |
160 |
40 |
2900 |
53 |
Y200L2-2/37 |
Y225M-2/45 |
|
200-150-400 |
|
200 |
50 |
1450 |
62 |
Y250M-4/55 |
Y280S-4/75 |
|
A |
200 |
42 |
1450 |
66 |
Y250M-4/55 |
Y250M-4/55 |
|
200-150-450 |
|
200 |
60 |
1450 |
58 |
Y280S-4/75 |
Y280M-4/90 |
|
200-150-315 |
|
400 |
32 |
1450 |
70 |
Y280S-4/75 |
Y280M-4/90 |
|
250-200-330 |
|
600 |
23 |
1450 |
68 |
Y280S-4/75 |
Y280M-4/90 |
|
250-200-350 |
|
500 |
32 |
1450 |
69 |
Y280S-4/75 |
Y280M-4/90 |
|
B |
400 |
26 |
1450 |
69 |
Y250M-4/55 |
Y280S-4/75 |
|
A |
600 |
27 |
1450 |
73 |
Y280S-4/75 |
Y280M-4/90 |
|
250-200-400 |
|
200 |
20 |
960 |
70 |
Y280S-6/45 |
Y280M-6/55 |
|
J |
300 |
12.5 |
730 |
67 |
Y225S-8/18.5 |
Y225M-8/22 |
|
A |
400 |
16 |
960 |
68 |
Y225M1-4/132 |
Y225M-3/37 |
|
250-200-450 |
|
500 |
50 |
1450 |
68 |
Y315M1-4/132 |
Y315L1-4/160 |
|
A |
400 |
40 |
1450 |
60 |
Y280M-4/90 |
Y315S-4/110 |
|
250-200-500 |
|
350 |
70 |
1450 |
60 |
Y315M1-4/132 |
Y315L1-4/160 |
|
A |
350 |
60 |
1450 |
58 |
|
300-250-400 |
|
800 |
35 |
1450 |
65 |
Y315M1-4/132 |
Y315L1-4/160 |
|
300-250-450 |
|
1000 |
20 |
960 |
73 |
Y315M1-6/90 |
Y315L1-6/110 |
|
J |
800 |
12.5 |
730 |
70 |
Y280M-8/45 |
Y315S-8/55 |
|
A |
800 |
16 |
960 |
72 |
Y280M-6/55 |
Y315S-6/ |
更多紙漿泵型號 請參考 |
